Description

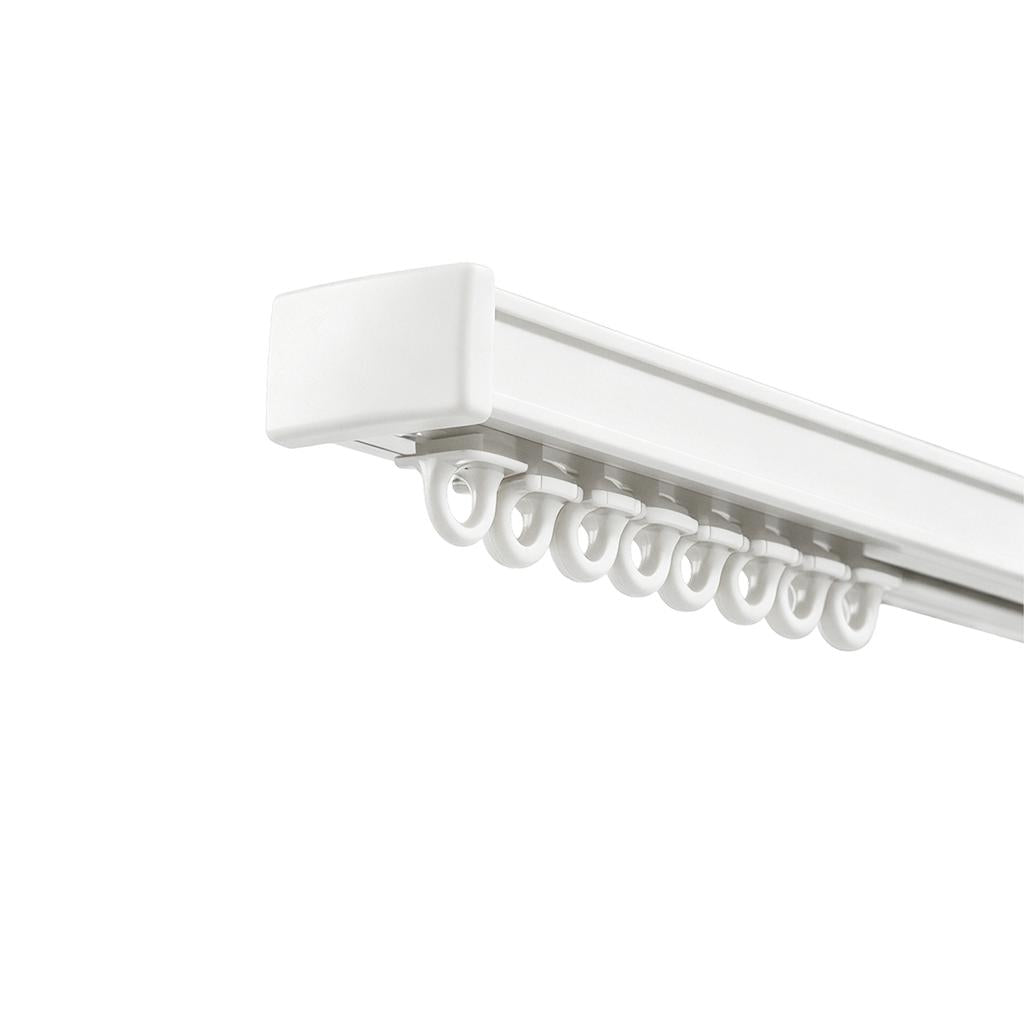

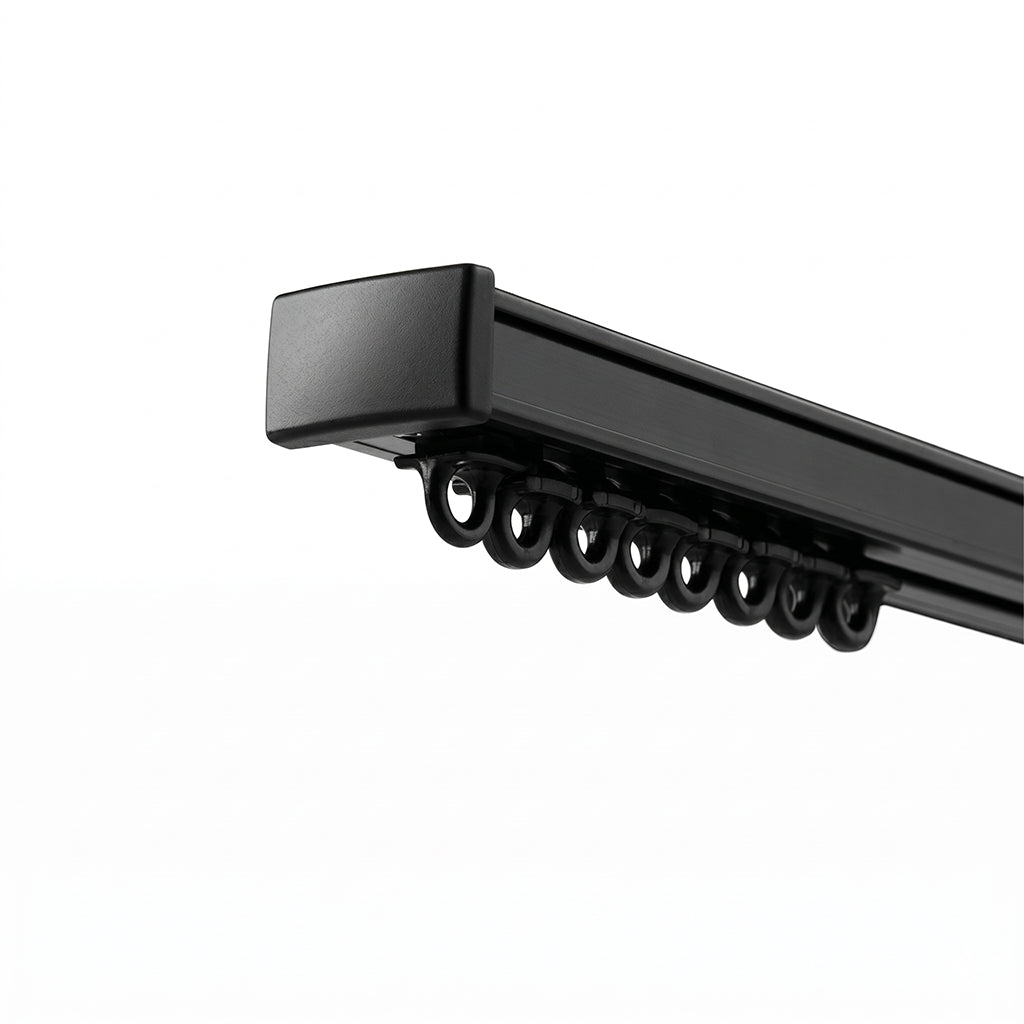

Material: Crafted from high-grade 6063-T5 aluminum.
Size: 12″ – 393″ (±1/8" tolerance)
Mounting Options: Ceiling mount, wall mount
Learn if your wall can support this hardware

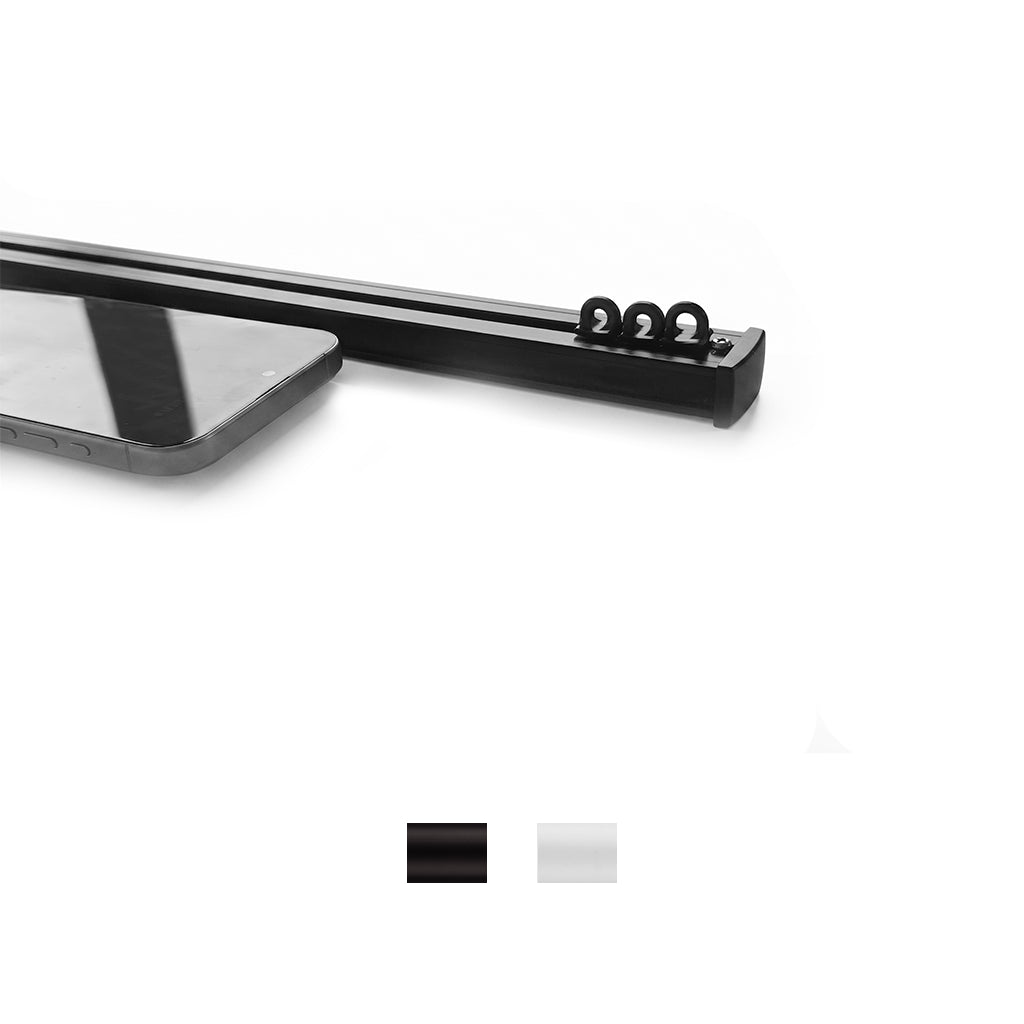

Track Thickness: 9/16 inches
Panel Configuration: Suitable for both single and split panels.

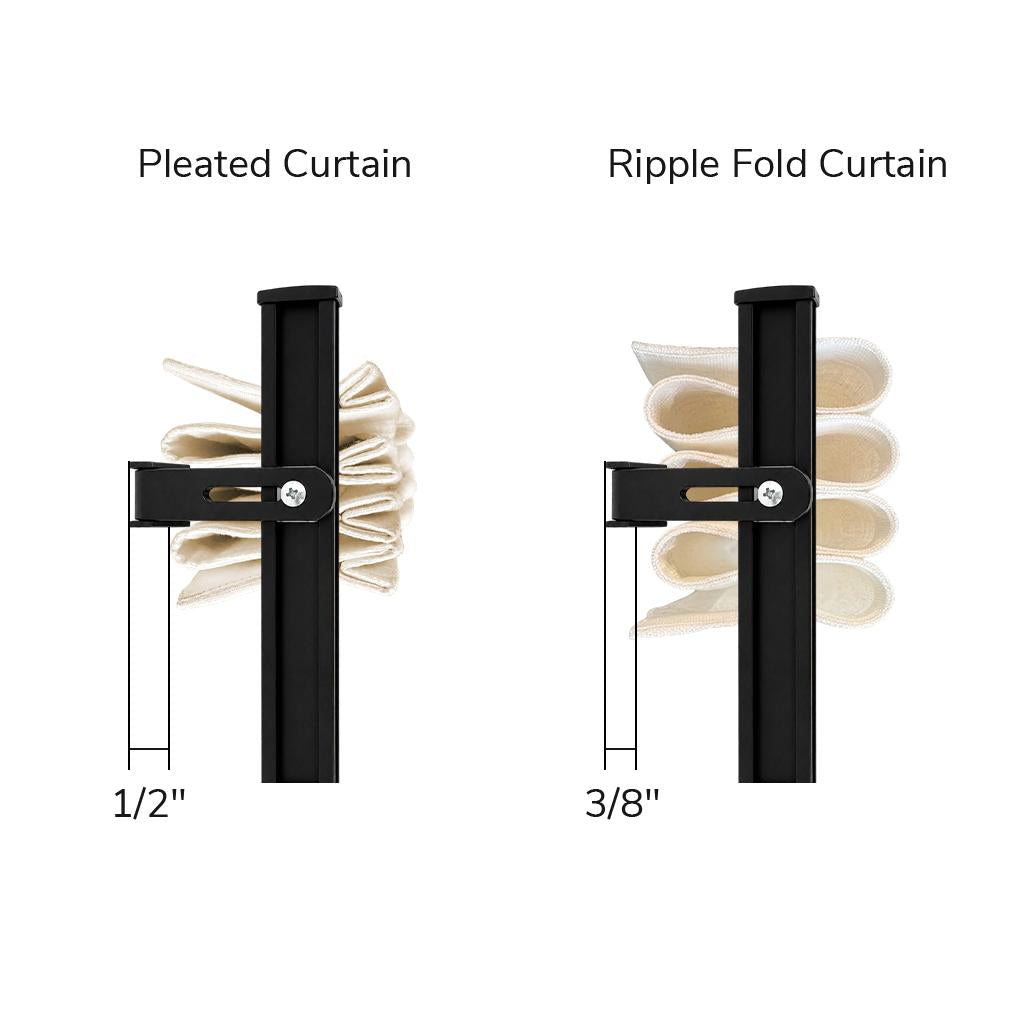

Brackets:
The middle bracket does not interfere with the curtain’s glide.
For best performance, brackets should be mounted on a load-bearing wall to maximize weight support.
Intallation video:
How to Install the Trent Curtain Track
Configuration

| Length (inch) | Brackets | Gliders | Weight Capacity | |
|---|---|---|---|---|
| 12″–90″ | 2-4 Brackets | 3-24 Gliders | Up to 33 lbs | |
| 91″–125″ | 5-6 Bracket | 22-32 Gliders | Up to 44 lbs | |
| 126″–169″ | 7-8 Bracket | 32-43 Gliders | Up to 55 lbs | |
| 170″–216″ | 9-11 Bracket | 42-54 Gliders | Up to 55 lbs | |
| 217″–260″ | 11-13 Bracket | 54-65 Gliders | Up to 66 lbs | |
| 261″–349″ | 13-17 Bracket | 65-87 Gliders | Up to 88 lbs | |
| 350″–393″ | 17-19 Bracket | 87-98 Gliders | Up to 99 lbs | |
| Calculate curtain weight → | ||||
Shipping & Returns
Freight: From $16.9, with final cost confirmed at checkout.
Shipping Time: 5-8 business days
Shipping Carriers: UPS, FedEx, or DHL
Visit Shipping Page for more.
Individually tailored to your specifications, they are uniquely yours and cannot be returned.
Visit Returns & Refunds Policy for more.
The Overlap Master Carrier
This specific master carrier is designed exclusively for drapes in a two-panel (split) configuration.
(Note: The track system itself is compatible with single-panel drapery using standard carriers.)
- Complete Blackout: Eliminates the annoying center gap by allowing panels to overlap.
- Effortless Gliding: Seamlessly guides fabrics to bypass each other without colliding.
- Tailored Look: Maintains the crisp, high-end silhouette of your pleated window treatments.
